LPG Generator
A 1MW (1000 kW / 1250 kVA) LPG-powered generator set engineered for both emergency standby and continuous prime power applications. Built around a high-displacement 16-cylinder gas engine and coupled with a brushless alternator featuring automatic voltage regulation (AVR), the system ensures stable output, precise voltage control, and long-term operational durability in demanding environments.
Operating at 1500 rpm / 50 Hz, the Titan 1000PL delivers consistent and reliable performance for commercial buildings, hospitals, data centers, industrial facilities, and utility infrastructure. The generator is optimized for LPG fuel systems that meet international gas quality standards, supporting efficient combustion, reduced emissions, and dependable load response.
Manufactured in accordance with ISO8528 and relevant GB standards, each unit undergoes comprehensive factory testing, including 0%–100% load bank verification and full inspection of protection and control systems prior to dispatch.
Specifications
| Category | Specification |
|---|---|
| Rated Power | 1000 kW / 1250 kVA |
| Standby Power | 1100 kW / 1375 kVA |
| Rated Speed / Frequency | 1500 rpm / 50 Hz |
| Rated Voltage | 400/230 V |
| Power Factor | 0.8 |
| Phase / Wire | 3 Phase / 4 Wire |
| Rated Current | 1800 A |
| Fuel Type | LPG |

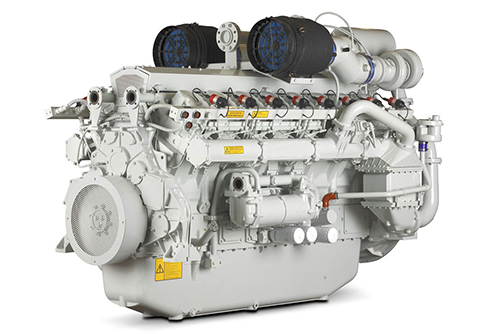

| Engine Model | Perkins 4016-61TRS2 |
| Cylinder Configuration | 16 Cylinders |
| Displacement | 61.12 L |
| Bore × Stroke | 160 × 190 mm |
| Air Intake | Turbocharged & Intercooled |
| Cooling System | Closed Cooling Cycle |
| Alternator Model | Stamford LVI634G |
| Excitation Method | Brushless, Self-Excited |
| Voltage Regulation | AVR |
| Insulation Class | H |
| Protection Class | IP23 |
| Dimensions (L×W×H) | 5660 × 2600 × 2960 mm |
| Weight | 11,998 kg |
